WM-2U03, 2U, three bays
Mac systems · 2U tray · In development
2U 3-bay Mac mini tray
Three bays in 2U with A/B power feeds, per-bay fusing and current telemetry, and the same capture pods as the WK line. A servo actuator and a USB-PD controller give every bay remote power and DFU control.
Configuration
Pricing preliminary until release · quoted, not carted · Mac minis not included
Capabilities
What it does.
Power like a datacenter
Two C14 feeds through an automatic transfer switch, with a relay, fusing, and current telemetry on every bay.
The power button, solved
A servo-driven actuator works the physical button with timed tap, force-off, and DFU hold sequences, with a spring-return failsafe.
DFU without hands
A per-bay USB-PD controller on the DFU port adds programmatic reboot, DFU entry, and a serial console. Preliminary.
Watched like the racks
HDMI and USB capture per bay, using the same capture pods as the WK chassis ports, inside the same console.
Customer traffic stays passive
Three passive Ethernet passthroughs carry tenant traffic straight through; it never touches the tray's electronics.
Grows in the field
Start with the bare enclosure and add the managed electronics later; the upgrade kit is field-installable.
Overview
Mac minis, run like servers.
Three bays in 2U with A/B power feeds through an automatic transfer switch, per-bay fusing and current telemetry, and the same capture pods as the WK line watching every screen.
The hard part of Mac hosting is the power button. A servo-driven actuator works it with timed tap, force-off, and DFU hold sequences, and a per-bay USB-PD controller on the DFU port adds programmatic reboot, DFU entry, and a serial console. Customer traffic rides passive passthroughs and never touches the tray's electronics.
3
bays in 2U
A/B
feeds, auto transfer
500 W
max input
~30 W
idle draw
The software
One management plane.
Every WarpKVM product runs the same management software. A browser is the only client: every KVM port, serial line, and Mac bay on the federation appears in one pane, behind one IP and one login, with RBAC, session recording, and a full audit trail. No client installs, no per-seat licensing.
Questions
Before you buy.
The enterprise line is quoted, not carted. Write to enterprise@warpkvm.com with the SKUs and port counts you need and we come back with a quote and current lead times. Pricing in the catalog and on these pages is preliminary until release.
No. The tray is the enclosure, power, and control plane; you supply the Mac minis.
Yes. WM-2U00E is the enclosure alone, with front USB passthrough and power buttons, and WM-2U03-UK upgrades it to fully managed in the field.
A per-bay USB-PD controller on the DFU port gives programmatic reboot, DFU entry, and a serial console, while the servo actuator drives the physical power button through its tap, force-off, and DFU hold sequences. The controller and an automated restore host are preliminary and part of the design-partner program.
Actively. Much of the line is being finalized now, and partners get direct input on configurations and firmware. Write to enterprise@warpkvm.com and tell us what you run.
Exactly what it says. We list every product with its current status rather than pretending it ships tomorrow: this line is in development, and specifications marked with a dagger are preliminary and can still change. Write to us for the current state and timeline of any unit.
Technical data
Specifications.
Power
- Feeds
- 2 × C14 (A / B), automatic transfer switch
- Per bay
- Relay, fusing, current telemetry
- Input
- 100 to 240 VAC · ~30 W idle · 500 W max
- Cooling
- Fanless: bottom-intake plenum, rear exhaust
Chassis
- Customer traffic
- 3 × passive Ethernet passthroughs
- Service
- Front SVC USB-C to any bay's DFU path †
- Indicators
- Feed A / B, ID / STAT, recessed reset
- Restore host
- Automated restore on the roadmap: design-partner program †
Per-bay control
- DFU control
- USB-PD controller: reboot, DFU entry, serial console †
- Power button
- Servo actuator: tap / force-off / DFU holds, spring-return failsafe
- Capture
- HDMI + USB, same pods as WK ports

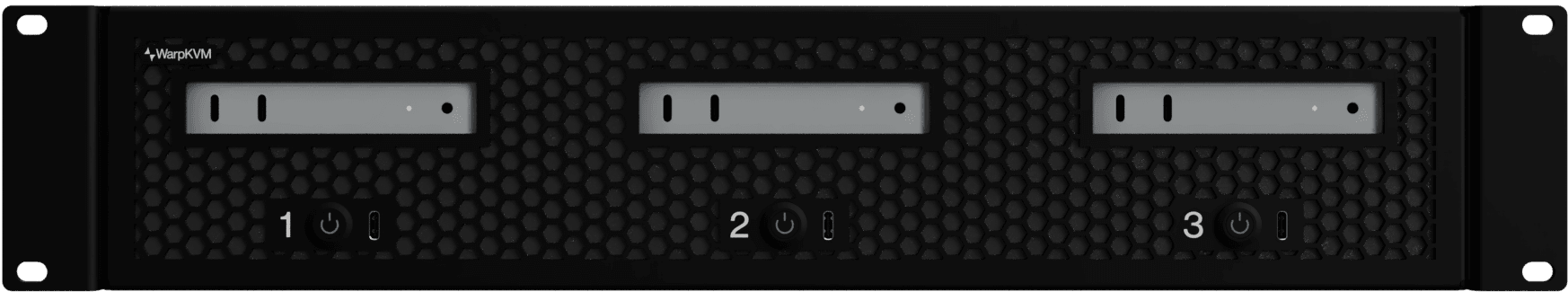

- Front panel
- Power button, RGB LED, label window

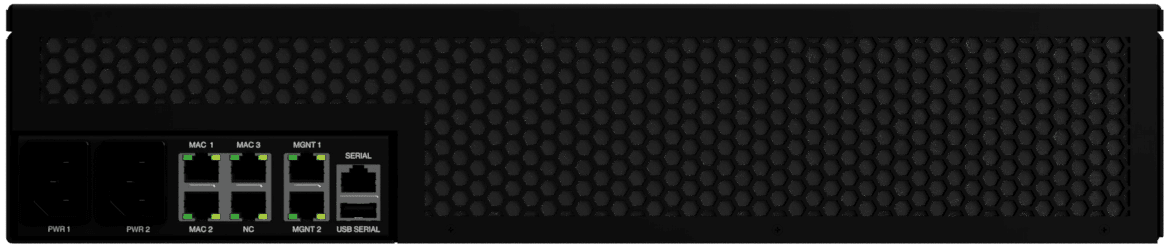

Connectivity
- Ethernet
- Redundant Ethernet inputs
- Management
- Serial and USB management ports
† Preliminary. Subject to change before release.
Read first
Documentation.
The rack line is documented in the enterprise catalog while it is in development. If something you need is missing, ask and we will write it down.
Enterprise catalog
WKVM-CAT-001 Rev. A. The full rack line: configurations, preliminary pricing, specifications, and the company behind it.
2U 3-bay Mac mini tray docs
This family in the documentation: what it does, configurations, and the full spec tables, alongside the rest of the rack line.
Talk to us
Quotes, design-partner inquiries, and configuration questions go straight to the people building it.
